Dry Core Figure-8 Cable with Steel Tape (GYTF8S)
Overview
In the Nitrotel GYTF8S cable, single-mode/multimode fibers are positioned in the loose tubes, which are made of high modulus plastic, while the loose tubes strand together around metallic central strength member into a compact and circular cable core, and the water-blocking yarns are distributed into interstices of it. After a PSP is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a HDPE sheath to be a figure-8 structure. This kind of cable is specifically used for self supporting aerial installation.
Key Features
- Excellent mechanical and temperature performance
- Critical protection to fibers, based on the excellent hydrolysis resistance and strength performance of tube material and special filling compound filled in the tube
- The following measures are taken to ensure the water blocking performance of the cable:
- Single steel wire used as the central strength member
- Special water-blocking filling compound in the loose tube
- 100% cable core fillingo PSP moisture barrier
- Application: Duct/Aerial

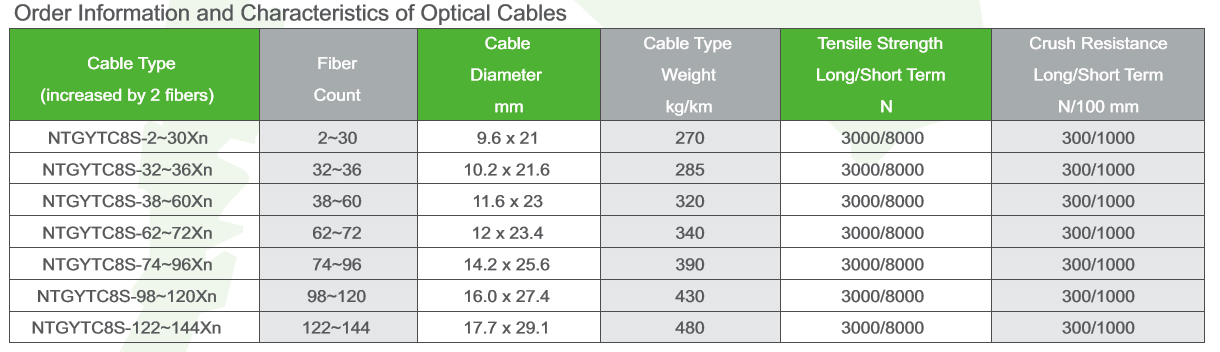

Specifications
Downloads

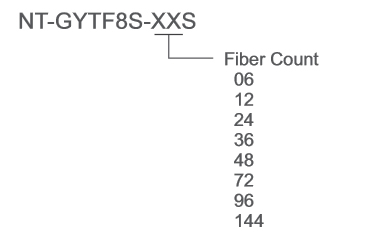

Ordering Information
NT-GYTF8S-XXS
