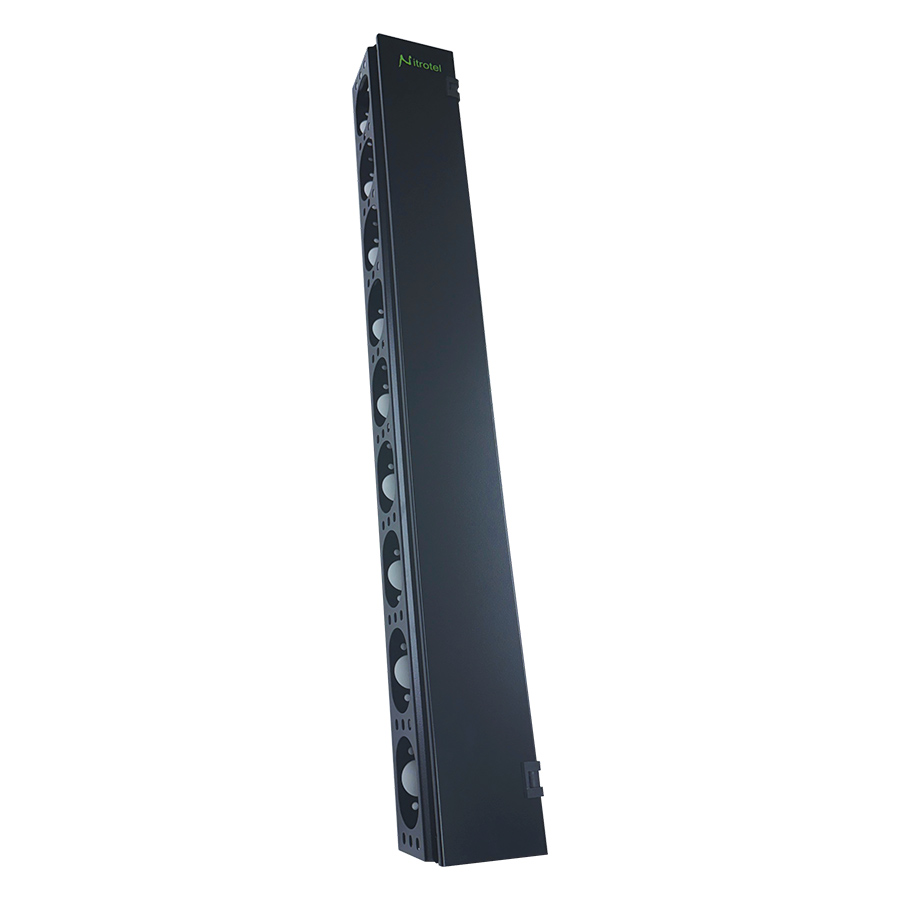

35” Single-sided Vertical Cable Manager for Open Racks
Categories: Cable Administration, Vertical Cable Managers
Overview
The Vertical Cable Management mounts on standard 28 to 45 U open racks to provide neat and orderly routing of cables and jumpers.
- The fingers (with smooth borders) in the channel provide enough spaced to allow easy entrance and exit of cables while still maintaining control of the twisted pairs cable bend radius.
- Hinged cover allows cable access without removing cover

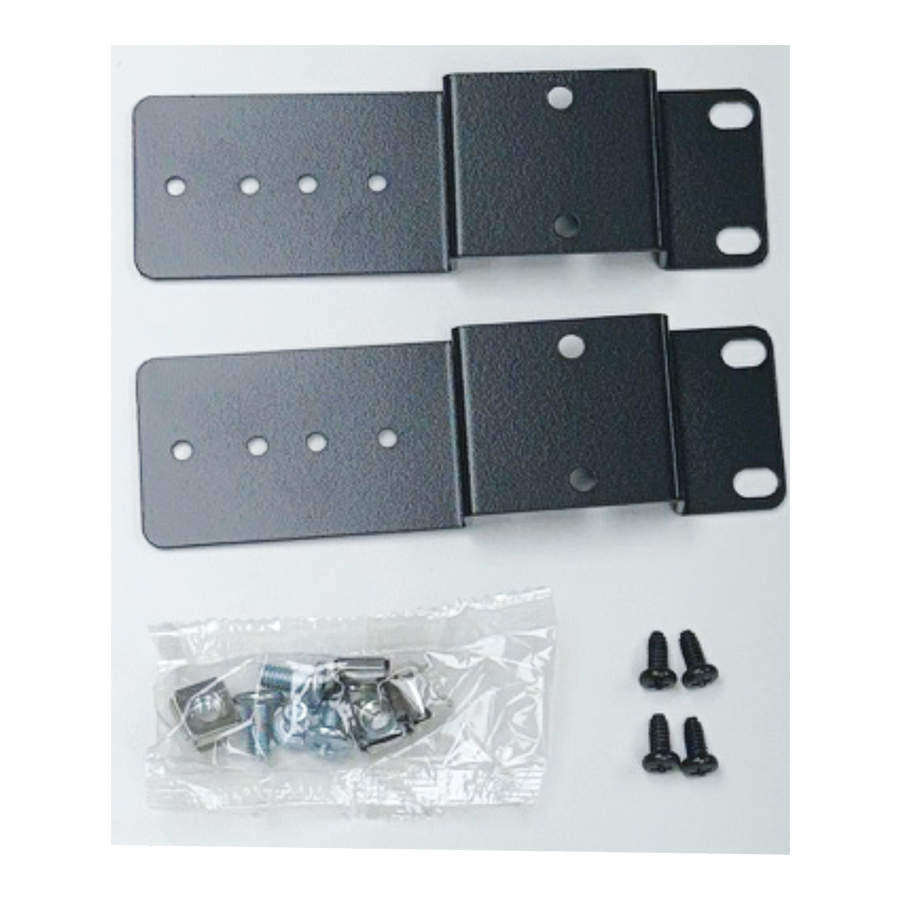

- Brackets according TIA-310
- Height: 20U, 890mm (35”)

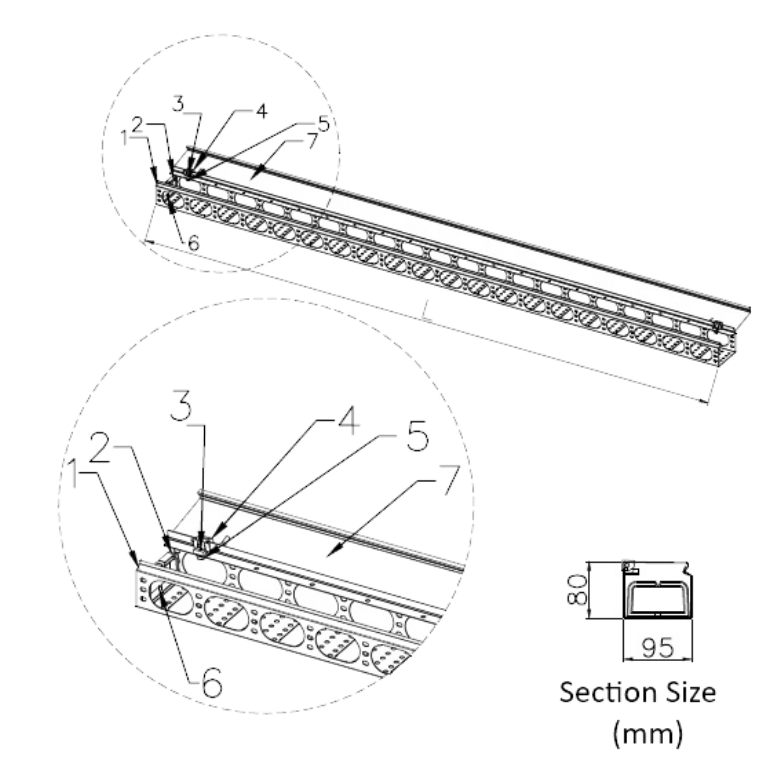

- Section: W 95mm (3.75”) D 80mm (3.15”) or 107 x 107mm (4.2×4.2”)
- Material: Cold Rolled Steel
- Color: Electrostatic Paint, Black RAL 9005
Key Features
Specifications
Downloads
Ordering Information
Model |
Depth |
Width |
NTCMF35SS |
80mm (3.15”) |
95 mm (3.75”) |
NTCMF35SSX |
107mm (4.2”) |
107mm (4.2”) |
