NITROTEL PRODUCT INFORMATION STRUCTURED CABLING STRUCTURED CABLING NITROTEL PRODUCT INFORMATION & PATCH CABLE LAN CABLE

STRUCTURED CABLING STRUCTURED CABLING

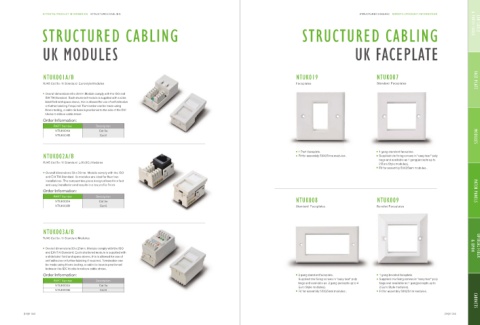

U MODULES U FACEPLATE

NTU A/B NTU NTU 7 FACE PLATE

RJ 45 Cat 5e 6 Standard Eurostyle Modules Faceplates Standard Faceplates

Overall dimensions 50 x 25mm.Module comply with the ISO and
EIA TIA Standard. Each shuttered module is supplied with a slide
label field and space above, this is allowed for use of self adhesive
or further labeling if required. Termination can be made using
Krone tooling, a cable tie base is positioned to the side of the IDC
blocks to relieve cable stress.
Order Information:
PART Number Description
NTUK001A Cat 5e
NTUK001B Cat 6 MODULES

1 Port faceplate. 1 gang standard faceplate.
NTU A/B Fit for assembly 50 25mm modules. Supplied c/w fixing screws in easy tear poly

bags and available as 1 gang(accepts up to
RJ 45 Cat 5e 6 Standard LJ6 (6C) Modules
2 Euro Style modules) .
Fit for assembly 50 25mm modules .
Overall dimensions 39 x 25mm. Module comply with the ISO
and EIA TIA Standard. 6c modules are ideal for floor box
installations. The compact two piece design allows for a fast
and easy installation and results in a low profile finish.
Order Information: PATCH PANELS
PART Number Description
NTUK002A Cat 5e NTU NTU
NTUK002B Cat 6 Standard Faceplates Beveled Faceplates

NTU A/B

RJ 45 Cat 5e 6 Standard Modules

Overall dimensions 50 x 25mm. Module comply with the ISO & XPON OPTICAL FIBER
and EIA TIA Standard. Each shuttered module is supplied with
a slide label field and space above, this is allowed for use of
self adhesive or further labeling if required. Termination can
be made using Krone tooling, a cable tie base is positioned
between the IDC blocks to relieve cable stress.
Order Information: 2 gang standard faceplate. 1 gang beveled faceplate.

Supplied c/w fixing screws in easy tear poly Supplied c/w fixing screws in easy tear poly
PART Number Description
bags and available as 2 gang (accepts up to 4 bags and available as 1 gang(accepts up to
NTUK003A Cat 5e
Euro Style modules) . 2 Euro Style modules) .
NTUK003B Cat 6 Fit for assembly 50 25mm modules . Fit for assembly 50 25mm modules. CABINETS

page 055 page 056
