NITROTEL PRODUCT INFORMATION STRUCTURED CABLING STRUCTURED CABLING NITROTEL PRODUCT INFORMATION & PATCH CABLE LAN CABLE

STRUCTURED CABLING STRUCTURED CABLING

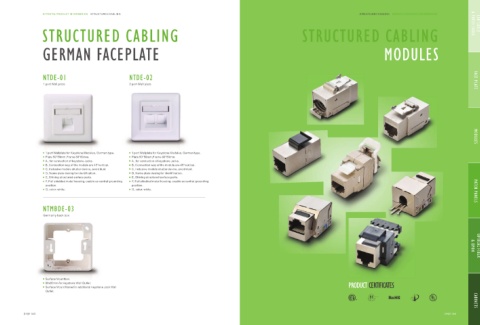

GERMAN FACEPLATE MODULES

NTDE NTDE FACE PLATE

1 port Wall plate 2 port Wall plate

1 port Wallplate for Keystone Modules, German type. 1 port Wallplate for Keystone Modules, German type. MODULES
Plate 50*50mm,Frame 80*80mm. Plate 50*50mm,Frame 80*80mm.
A , for connection of keystone Jacks. A , for connection of keystone Jacks.
B, Connection way of the module are 45 vertical. B, Connection way of the module are 45 vertical.
C, Inclusive module shutter device, avoid dust. C, Inclusive module shutter device, avoid dust.
D, Name plate desing for identification. D, Name plate desing for identification.
E, Shining structured surface parts. E, Shining structured surface parts.
F, Full shielded metal housing, usable as central grounding F, Full shielded metal housing, usable as central grounding
position. position.
G, color: white. G, color: white. PATCH PANELS

NTMBDE

Germamy back box

Surface Mountbox. & XPON OPTICAL FIBER

80x80mm for keystone Wall Outlet.
Surface Mount frame for additional keystone Jack Wall PRODUCT CERTIFICATES
Outlet. CABINETS

page 059 page 060
