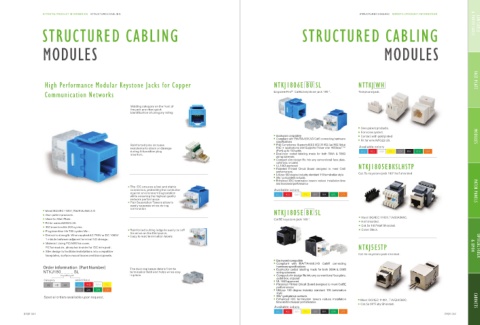

High Performance Modular Keystone Jacks for Copper NTKJ1806E BU SL NTTKJ WH FACE PLATE
EngineerPro Cat6E keystone jack 180 °. Telephone jack.
®
Communication Networks

Molding category on the front of
the jack provides quick
identification of category rating

Own patent products .
For voice system .
Backward compatible Contact with gold plated MODULES
Compliant with EIA/TIA-568.2-D Cat6 connecting hardware Fit for wire AWG22-26 .
specifications
Reinforced pins increase PoE Compliance: Supports IEEE 802.3f/ 802.3at /802.3bt at Available colors
resistance to strain or damage PoE++ applications and Supports Power over HDBaseT™
RD
WH
during 4-6position plug (PoH) up to 100 watts BU
YL GY BK GN OR
insertion. Dual-color coded labeling made for both 568A & 568B
wiring schemes
Compact slim design fits into any conventional face plate,
outlet box, or panel
UL 1863 approved NTKJ1805EBKSLHSTP
Patented Printed Circuit Board designed to meet Cat6
performances Cat.5e keystone jack 180 ° half shielded

Utilizes 180 degree industry standard 110 termination style
50u” gold plated contacts.
Enhanced IDC termination towers reduce installation time
and increased performance
h
e I
The IDC ensures a fast and stable
T
connection, protecting the conductor Available colors PATCH PANELS
against environment degradation RD WH YL GY BK GN OR
o on
t
while ensuring the highest quality ty BU
network performance.
Pair Separation Towers allow to
easily separate wires during
termination
Meet ISO/IEC 11801,TIA/EIA-568.2-D NTKJ1805E BK SL
Own patent products .
Meet ISO/IEC 11801,TIA/EIA568C.
Used for Wall Plate . Cat5E keystone jack 180 °.
Fit for wires AWG22-26 . . Half shielded.
Cat.5e 180°Half Shielded .
IDC insertion life 200 cycles .

Reinforced cutting ledge to easily cut off Color : Black .
Plug insertion life 750 cycles Min .
the wires on the first punch.
Dielectric strength: When applied AC 750V or DC 1000V
Easy to read termination labels.
1 minute between adjacent terminal NO change .
Material: Using PC/ABS for cover,
PC for module, phosphor bronze for IDC wire post . NTKJ5ESTP & XPON OPTICAL FIBER
Slim design to facilitate installations into compatible
Cat.5e keystone jack shielded.
faceplates, surface-mount boxes and black panels.
Backward compatible
Compliant with EIA/TIA-568.2-D Cat5E connecting
The dust cap keeps debris from te hardware specifications
Dual-color coded labeling made for both 568A & 568B
NTKJ180_ _ _ _ SL termination field and helps wires stay wiring schemes
in place. Compact slim design fits into any conventional face plate,
outlet box, or panel
Category Jacket Color
UL 1863 approved
YL
RD
5E 6E 6A BU WH Patented Printed Circuit Board designed to meet Cat5E
performances
BK
GY GN OR Utilizes 180 degree industry standard 110 termination
style

Special orders available upon request. 50u” gold plated contacts.
Enhanced IDC termination towers reduce installation Meet ISO/IEC 11801, TIA/EIA568C.
time and increased performance CABINETS
Cat.5e 90°Fully Shielded .
Available colors
BU
RD
YL GY BK GN OR
WH
