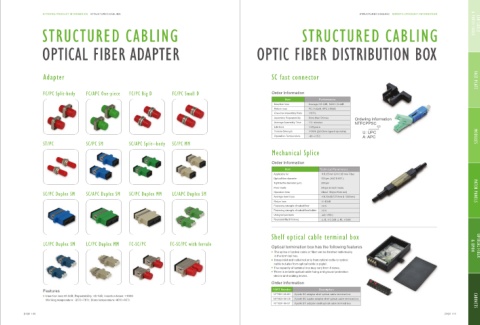

NITROTEL PRODUCT INFORMATION STRUCTURED CABLING STRUCTURED CABLING NITROTEL PRODUCT INFORMATION & PATCH CABLE LAN CABLE

STRUCTURED CABLING STRUCTURED CABLING

OPTICAL FIBER ADAPTER OPTIC FIBER DISTRIBUTION BOX

Ada ter SC fast onne tor FACE PLATE

FC/PC S lit body FC/APC One ie e FC/PC Big D FC/PC S all D Order Information
Item Performance
Insertion loss Average 0.2dB, MA 0.4dB
Return ross PC: 40dB, APC 55dB
One-time Assembly Rate 97%
Assembly Repeatability More than 5 times
Ordering information
Average Assembly Time 3 minutes
NTFCPPSC _
Life-time 30years
Tensile Strength 30N (2x3 Bow-type drop cable) U: UPC
Operation Temperature -40~+75℃ A: APC MODULES
ST/PC SC/PC SM SC/APC S lit body SC/PC MM
Me hani al S li e

Order Information
Item Technical Parameters
Applicable for 0.25 mm 0.90 mm Fiber
Optical fiber diameter 125 m ( 652 657 )
Tight buffer diameter ( m) 250 m
Fiber mode Single multi mode
SC/PC Du le SM SC/APC Du le SM SC/PC Du le MM LC/APC Du le SM Operation time About 10s(no fiber cut) PATCH PANELS
Average Insert loss 0.15dB(1310nm 1550nm)
Return loss -40dB
Fastening strength of naked fiber 5 N
Fastening strength of naked fiber holder 8 N
Using temperature -40~+75℃
Repeatability(10 times) △ IL 0.2dB △ RL 5dB

Shelf o ti al able ter inal bo
LC/PC Du le SM LC/PC Du le MM FC SC/PC FC SC/PC with ferrule
Optical termination box has the following features & XPON OPTICAL FIBER
The splice of optical cable or fiber can be finished individually
in the terminal box.
It may inlet and outlet not only from optical cable to optical
cable but also from optical cable to pigtail.
The capacity of terminal box may vary from 8 cores.
There is reliable optical cable fixing and ground protection
device and sealing device.
Order Information

Features PART Number Description
NTTB01-08-SC 8 ports SC adapter shelf optical cable terminal box

Insertion loss: 0.2dB Repeatability: 0.1dB Insertion times: >1000.

Working temperature: -25℃~70℃ Store temperature: -40℃~85℃. NTTB02-08-CS 8 ports SC duplex adapter shelf optical cable terminal box CABINETS
NTTB01-08-ST 8 ports ST adapter shelf optical cable terminal box
