DATA RAC

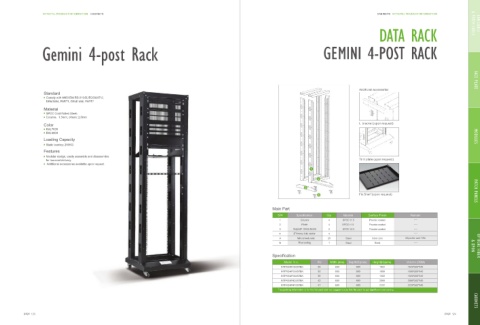

Ge ini ost Ra GEMINI POST RAC

Additional accessories FACE PLATE
Standard
Comply with ANSI/EIA RS-310-D,IEC60297-2,
DIN41494, PART1, DIN41494, PART7
Material
SPCC Cold Rolled Steel
Column 1.5mm, others: 2.0mm
Color L bracket (upon request)
RAL7035
RAL9004
Loading Capacity MODULES
Static loading: 250KG
Features
Modular design, easily assemble and disassemble
for low-cost delivery. Trim plate (upon request)
Additional accessories available upon request.

Fix Shelf (upon request) PATCH PANELS

Main Part
S/N Speci cation ty Material Surface Finish Remark
1 Column 4 SPCC t1.5 Powder coated ----
2 Plinth 4 SPCC t1.5 Powder coated ----
3 Support Cross beam 2 SPCC t2.0 Powder coated ----
4 2 heavy duty castor 4 ----
A M6 screw nuts 20 Steel Color zinc 40pcs for over 33U
B Trox tooling 1 Steel Black ---- & XPON OPTICAL FIBER

Speci cation
Model N o. RU Width (mm) Depth(D)(mm) Height(H)(mm) Volume (CBM)
NTFRG4P29USTBK 29 600 600 1422 1420*260*140
NTFRG4P33USTBK 33 600 600 1600 1600*260*140
NTFRG4P38USTBK 38 600 600 1822 1820*260*140
NTFRG4P42USTBK 42 600 600 2000 2000*260*140
NTFRG4P47USTBK 47 600 600 2222 2220*260*140
The packing information is for the at pack and we suggest to use this at pack to get signi cant cost saving. CABINETS
