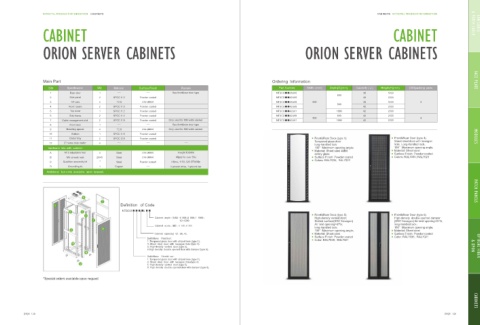

Page 69 - Catalog

NITROTEL PRODUCT INFORMATION CABINETS CABINETS NITROTEL PRODUCT INFORMATION & PATCH CABLE LAN CABLE

CABINET CABINET

ORION SERVER CABINETS ORION SERVER CABINETS

Main Part Ordering Information FACE PLATE
S/N Specification Qty Material Surface Finish Remark Part Number. Width (mm) Depth(D)(mm) Capacity ( U ) Height(H)(mm) CKDpacking parts
1 Rear door 1 ---- ---- See front&rear door type NTSCO■■26U66 26 1200
600
2 Side panel 4 SPCC t1.2 Powder coated NTSCO■■42U66 42 2000
3 19” rails 4 T2.0 zinc-plated NTSCO■■26U68 600 26 1200 3
800
4 Front beam 2 SPCC t1.5 Powder coated NTSCO■■42U68 42 2000
5 Top cover 1 SPCC t1.2 Powder coated NTSCO■■42U61 1000 42 2000
6 Side frame 2 SPCC t1.2 Powder coated NTSCO■■42U88 800 42 2000
800 4
7 Cable management slot 2 SPCC t1.0 Powder coated Only used for 800 width cabinet NTSCO■■42U81 1000 42 2000
8 Front door 1 ---- ---- See front&rear door type
9 Mounting spacer 4 T2.0 zinc-plated Only used for 800 width cabinet
10 Bottom 1 SPCC t1.0 Powder coated
11 Caster tray 2 SPCC t2.0 Powder coated Front&Rear Door (type 1) Front&Rear Door (type 4) MODULES
Tempered glass door Sheet steel door with hexagon
12 2” heavy duty castor 4 ---- ---- ----
long-handled lock hole. Long-handled lock；
hardware kits with cabinet: 180°Maximum opening angle; 180°Maximum opening angle;
Material: Sheet steel 4MM Material: Sheet steel
A M12 adjustable feet 4 Steel zinc-plated Height:100MM
safety glass Surface Finish: Powder coated
B M6 screw& nuts 20/40 Steel zinc-plated 40pcs for over 33U Surface Finish: Powder coated Colors: RAL7035; RAL7021
Colors: RAL7035; RAL7021
C Quiet fan assembly kit 1 Steel Powder coated 4 fans, 115V, 125 CFM/Min
D Grounding kit 1 Copper ---- 4 ground wires, 1 ground bar
Additional fan units available upon request.

Definition of Code PATCH PANELS
NTSCO U
Front&Rear Door (type 5) Front&Rear Door (type 6)
Cabinet depth:(MM):6=600;8=800;1=1000; High-density vented door; High density double opened damper
12=1200 Slotted surface(SW7 hexagon) (SW7 hexagon) Air inlet opening>67%;
Air inlet opening>67%; long-handled lock；
Cabinet width:(MM): 6=600;8=800
long-handled lock； 180°Maximum opening angle;
180°Maximum opening angle; Material: Sheet steel
Cabinet capacity( U): 26, 42. Material: Sheet steel Surface Finish: Powder coated
Surface Finish: Powder coated Color: RAL7035; RAL7021
Definitiono freardoor: Color: RAL7035; RAL7021
1: Tempered glass door with striped hole (type 1).
4: Sheet steel door with hexagon hole (type 4).
5: High-density vented door (type 5). & XPON OPTICAL FIBER
6:High density double opened door with damper (type 6).
Definitiono f frontd oor:
1: Tempered glass door with striped hole (type 1).
4: Sheet steel door with hexagon hole(type 4).
5: High-density vented door (type 5).
6: High density double opened door with damper (type 6).
*Special orders available upon request

page 129 page 130 CABINETS
