NITROTEL PRODUCT INFORMATION    CABINETS                                                                                                                              CABINETS   NITROTEL PRODUCT INFORMATION        & PATCH CABLE  LAN CABLE



                                                                                                                                                                                                        CABINET

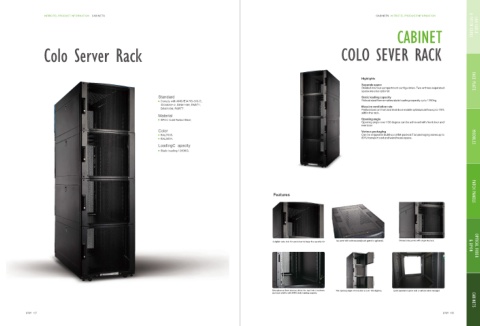

                       Colo Server Rack                                                                                                                                     COLO SEVER RACK







                                                                                                                                                                                      Highlights                                             FACE PLATE
                                                                                                                                                                                      Separate space
                                                                                                                                                                                      Divided into four compartment configuration. Two or three separated
                                                                                                                                                                                      space are also optional.
                                                                                Standard                                                                                              Static loading capacity
                                                                                 Comply with ANSI/EIA RS-310-D,                                                                       Robust steel frame makes static loading capacity up to 1200kg
                                                                                 IEC60297-2, DIN41494; PART1;
                                                                                                                                                                                      Massive ventilation rate
                                                                                 DIN41494; PART7 .                                                                                    Perforations on front and rear door enable optimum airflow up to 78%
                                                                                                                                                                                      within the rack.
                                                                                Material
                                                                                 SPCC Cold Rolled Steel;                                                                              Opening angle
                                                                                                                                                                                      Opening angle over 130 degree can be achieved with front door and
                                                                                                                                                                                      rear door.
                                                                                Color                                                                                                 Various packaging
                                                                                 RAL7035.                                                                                             Can be shipped in build-up or flat-packed.Flat packaging saves up to
                                                                                 RAL9004.                                                                                             60% transport cost and warehouse space.                MODULES
                                                                                LoadingC apacity
                                                                                 Static loading:1200KG.











                                                                                                                                          Features                                                                                           PATCH PANELS













                                                                                                                                                                         Top panel with cable access(brush panel is optional).  Divided side panels with single key lock.
                                                                                                                                         3-digital code lock for each door to keep the security for                                         & XPON  OPTICAL FIBER



                                                                                                                                                                                                                                         F








                                                                                                                                         Strengthened fixed shelves divide the rack into 4 sections   The opening angle of front door is over 130 degrees.                     Each separated space with a vertical cable manager.
                                                                                                                                         and each shelf is with 80KG static loading capacity.                                                CABINETS




              page 137                                                                                                                                                                                                         page 138
