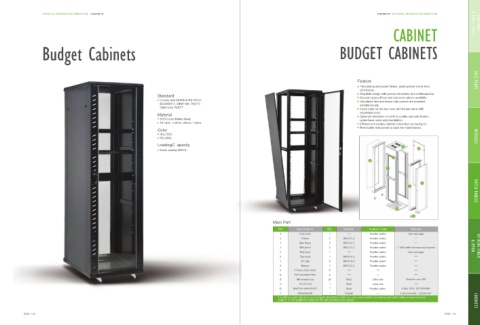

CABINET

B et Ca inets BUD ET CABINETS

Feature FACE PLATE
Flat packing and patent frame, packing time is less than
20 minutes
Ex uisite design with precise dimension and craftsmanship.
Standard
Several styles of front and rear door options available.
Comply with ANSI/EIA RS-310-D,
Ad ustable feet and heavy duty castors are available
IEC60297-2, DIN41494; PART1;
simultaneously.
DIN41494; PART7 .
Cable entry on the top cover and bottom panel with
ad ustable sizes .
Material
Optional installation of plinth to enable cabinets fixation,
SPCC Cold Rolled Steel;
under-base cable entry/ventilation.
19 rails 2.0mm, others: 1.2mm.
Efficient and reliable cabinet connection by baying kit.
Removable side panels to ease the maintenance.
Color
RAL7035.
RAL9004. MODULES
LoadingC apacity
Static loading:800KG.

Main Part PATCH PANELS

S/N Specification ty Material Surface Finish Remark
1 Front door 1 ---- Powder coated See next page
2 Frame 2 SPCC t1.2 Powder coated ----
3 Side frame 2 SPCC t1.2 Powder coated ----
4 Side panel 2 SPCC t1.2 Powder coated 1000 width cabinets need 4 panels & XPON OPTICAL FIBER
5 Rear door 1 ---- Powder coated See next page
6 Top cover 1 SPCC t1.2 Powder coated ----
7 19 rails 4 SPCC t2.0 Powder coated ----
8 Bottom 1 SPCC t1.2 Powder coated ----
9 2 heavy duty castor 4 ---- ---- ----
A M12 ad ustable feet 4 ---- v ----
B M6 screw nuts 20 Steel Color zinc 40pcs for over 33U
C Trox tooling 1 Steel Color zinc ----
D uiet fan assembly kit 1 Steel Powder coated 4 fans, 115V, 125 CFM/Min
F Grounding kit 1 Copper ---- 4 ground wires, 1 ground bar
The 600mm width cabinet can be changed to the 800mm width one, only need to put the connecting panel and 2 cable management slots.
Support 19 EIA e uipment. Additional fan units available upon re uest. CABINETS
