NITROTEL PRODUCT INFORMATION CABINETS CABINETS NITROTEL PRODUCT INFORMATION & PATCH CABLE LAN CABLE

CABINET CABINET

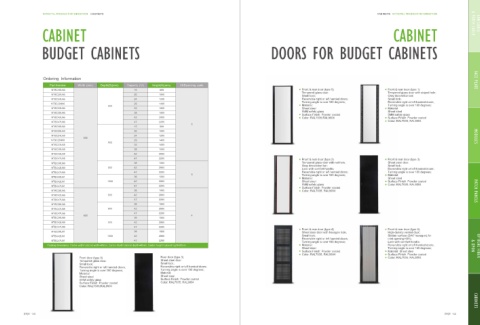

BUDGET CABINETS DOORS FOR BUDGET CABINETS

Ordering Information FACE PLATE
Part Number. Width (mm) Depth(D)(mm) Capacity ( U ) Height(H)(mm) CKDpacking parts
NTBC15U66 15 800 Front & rear door (type 0) Front & rear door (type 1)
Tempered glass door. Tempered glass door with striped hole.
NTBC20U66 20 1000
Small lock; Gray decoration bar;
NTBC24U66 24 1200 Reversible right or left handed doors; Small lock;
Turning angle is over 180 degrees; Reversible right or left handed doors;
NTBC29U66 29 1400 Material: Turning angle is over 180 degrees;
600
NTBC33U66 33 1600 Sheet steel Material:
5MM safety glass Sheet steel
NTBC38U66 38 1800
Surface Finish: Powder coated 5MM safety glass
NTBC42U66 42 2000 Color: RAL7035;RAL9004 Surface Finish: Powder coated
Color: RAL7035; RAL9004
NTBC47U66 47 2200
3
NTBC15U68 15 800
NTBC20U68 20 1000
NTBC24U68 24 1200 MODULES
600
NTBC29U68 29 1400
800
NTBC33U68 33 1600
NTBC38U68 38 1800
NTBC42U68 42 2000
NTBC47U68 47 2200
Front & rear door (type 2) Front & rear door (type 3)
NTBC38U69 38 1800 Tempered glass door with net hole. Sheet steel door.
Gray decoration bar; Small lock;
NTBC42U69 900 42 2000 Lock with comfort handle; Reversible right or left handed doors;
NTBC47U69 47 2200 Reversible right or left handed doors; Turning angle is over 180 degrees;
3 Turning angle is over 180 degrees; Material:
NTBC38U61 38 1800
Material: Sheet steel
NTBC42U61 1000 42 2000 Sheet steel Surface Finish: Powder coated
5MM safety glass Color: RAL7035; RAL9004
NTBC47U61 47 2200
Surface Finish: Powder coated
NTBC38U86 38 1800 Color: RAL7035; RAL9004 PATCH PANELS
NTBC42U86 600 42 2000
NTBC47U86 47 2200
NTBC38U88 38 1800
NTBC42U88 800 42 2000
NTBC47U88 47 2200
800 4
NTBC38U89 38 1800
NTBC42U89 900 42 2000
NTBC47U89 47 2200
Front & rear door (type 4) Front & rear door (type 5)
NTBC38U81 38 1800 Sheet steel door with hexagon hole. High-density vented door;
NTBC42U81 1000 42 2000 Small lock; Slotted surface (SW7 hexagon) Air
Reversible right or left handed doors; inlet opening>60%;
NTBC47U81 47 2200
Turning angle is over 180 degrees; Lock with comfort handle;
Packing dimensions: Carton width=cabinet width+40mm, Carton depth=cabinet depth+40mm, Carton height=cabinet hight+90mm Material: Reversible right or left handed doors; & XPON OPTICAL FIBER
Sheet steel Turning angle is over 180 degrees;
Surface Finish: Powder coated Material: Sheet steel
Color: RAL7035; RAL9004 Surface Finish: Powder coated
Front door (type 0) Rear door (type 3) Color: RAL7035; RAL9004
Tempered glass door. Sheet steel door.
Small lock; Small lock;
Reversible right or left handed doors; Reversible right or left handed doors;
Turning angle is over 180 degrees; Turning angle is over 180 degrees;
Material: Material:
Sheet steel Sheet steel
5MM safety glass Surface Finish: Powder coated
Surface Finish: Powder coated Color: RAL7035; RAL9004
Color: RAL7035;RAL9004
page 145 page 146 CABINETS
