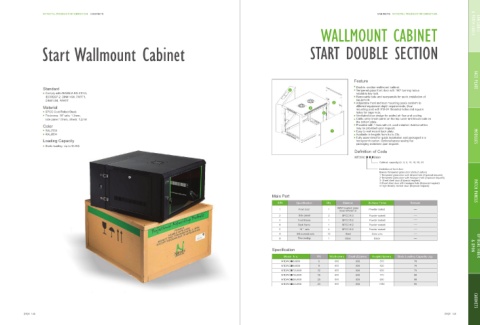

ALLMOUNT CABINET

Start allmo nt Ca inet START DOUBLE SECTION

Feature FACE PLATE
Double -section wallmount cabinet.
Standard
Tempered glass front door with 180 turning radius
Comply with ANSI/EIA RS-310-D, rotatable key lock.
IEC60297-2, DIN41494, PART1, Removable side and rear panels for uick installation of
DIN41494, PART7 e uipment.
Ad ustable front and rear mounting posts conform to
Material different e uipment depth re uirements. Dual
mounting post with 12-24 threaded holes and s uare
SPCC Cold Rolled Steel; holes for cage nuts.
Thickness: 19 rails: 1.2mm, Ventilated door design for added air flow and cooling.
side panel 1.0mm, others: 1.2mm Cable entry brush panel on the top cover and knock-outs on
the bottom plate.
Color Provided with 1 fans with UL cord installed. Additional fan
may be provided upon re uest.
RAL7035 Easy to wall mount back plate.
RAL9004 Available in heights from 6u to 23u.
Fully assembled for uick installation and packaged in a MODULES
Loading Capacity
Loading Capacity honeycomb carton. Optional space saving flat
packaging available upon re uest.
Static loading: Up to 95 KG
Static loading: Up to 95 KG
Definition of Code
NTD C U650
Cabinet capacity(U): 6, 9, 12, 16, 20, 23
Definition of front door:
Blanck-Tempered glass door (default option)
1-Tempered glass door with striped hole (Especial re uest)
2-Tempered glass door with hexagon hole (Especial re uest)
3- Sheet steel door (Especial re uest)
4-Sheet steel door with hexagon hole (Especial re uest)
5-High-density vented door (Especial re uest)
Main Part PATCH PANELS

S/N Specification ty Material Surface Finish Remark
5MM toughed glass
1 Front door 1 Powder coated ----
door/ SPCCt1.2
2 Side panel 2 SPCC t1.0 Powder coated ----
3 Front frame 1 SPCC t1.2 Powder coated ----
4 Back frame 1 SPCC t1.2 Powder coated ----
5 19 rails 4 SPCC t1.2 Powder coated ----
A M6 screw nuts 10 Steel Color zinc ----
B Trox tooling 1 Steel Black ----

Specification & XPON OPTICAL FIBER
Model N o. RU idth (mm) Depth(D)(mm) Height(H)(mm) Static Loading Capacity (kg)
NTD C 6U650 6 600 650 370 70
NTD C 9U650 9 600 650 500 70
NTD C 12U650 12 600 650 635 75
NTD C 16U650 16 600 650 770 80
NTD C 20U650 20 600 650 900 90
NTD C 23U650 23 600 650 1080 95
