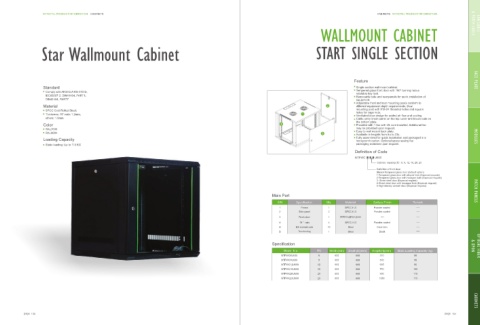

ALLMOUNT CABINET

Star allmo nt Ca inet START SIN LE SECTION

Feature FACE PLATE
Standard Single-section wallmount cabinet.
Tempered glass front door with 180 turning radius
Comply with ANSI/EIA RS-310-D, rotatable key lock.
IEC60297-2, DIN41494, PART1; Removable side and rear panels for uick installation of
DIN41494, PART7 e uipment.
Ad ustable front and rear mounting posts conform to
Material different e uipment depth re uirements. Dual
SPCC Cold Rolled Steel mounting post with 12-24 threaded holes and s uare
holes for cage nuts.
Thickness: 19 rails: 1.2mm,
Ventilated door design for added air flow and cooling.
others: 1.0mm Cable entry brush panel on the top cover and knock-outs on
the bottom plate.
Color Provided with 1 fan with UL cord installed. Additional fan
RAL7035 may be provided upon re uest.
Easy to wall mount back plate.
RAL9004
Available in heights from 6u to 23u.
Fully assembled for uick installation and packaged in a MODULES
Loading Capacity honeycomb carton. Optional space saving flat
Static loading: Up to 1 15 KG packaging available upon re uest.
Static loading: Up to 115 KG
Definition of Code
NTF C U600
Cabinet capacity( U): 6, 9, 12, 16, 20, 23
Definition of front door:
Blanck-Tempered glass door (default option)
1-Tempered glass door with striped hole (Especial re uest)

2-Tempered glass door with hexagon hole (Especial re uest)
3- Sheet steel door (Especial re uest)
4-Sheet steel door with hexagon hole (Especial re uest)
5-High-density vented door (Especial re uest)
Main Part PATCH PANELS
S/N Specification ty Material Surface Finish Remark
1 Frame 1 SPCC t1.0 Powder coated ----
2 Side panel 2 SPCC t1.0 Powder coated ----
3 Front door 1 5MM toughed glass ---- ----
4 19 rails 4 SPCC t1.2 Powder coated ----
A M6 screw nuts 10 Steel Color zinc ----
B Trox tooling 1 Steel Black ----

Specification & XPON OPTICAL FIBER

Model N o. RU idth (mm) Depth(D)(mm) Height(H)(mm) Static Loading Capacity (kg)
NTF C6U600 6 600 600 370 90
NTF C9U600 9 600 600 500 90
NTF C12U600 12 600 600 635 95
NTF C16U600 16 600 600 770 100
NTF C20U600 20 600 600 900 110
NTF C23U600 23 600 600 1080 115
